ZVM-29082 "VEYA" 4×4
More cross-country ability. Fewer route restrictions.
The ZVM-29082 "VEYA" is an all-wheel-drive wheeled amphibious ATV designed for transporting people, equipment, and cargo in conditions where conventional transport loses mobility. Enlarged wheels, high ground clearance, and portal axles help overcome difficult terrain, while the sealed body allows it to continue moving on water.
1. Cross-country ability that opens new routes
"VEYA" is designed for movement over rough terrain, deep snow, swamps, and other weak soils.
The 4×4 wheel arrangement provides drive to all wheels. Portal axles and ground clearance of from 700 mm help overcome uneven terrain, ruts, and obstacles that become a serious limitation for conventional vehicles.
2. 1680×700 mm tires — a large support area on difficult terrain
Ultra-low pressure tires are one of the key elements of the "VEYA" design. Due to the large contact area with the surface, the load is distributed over the ground, reducing specific pressure and the risk of sinking.
This is especially important when driving on snow, swamps, peat bogs, and sand — where heavy equipment finds it difficult to maintain stable movement. The 1680×700 mm size, combined with portal axles and high ground clearance, helps "VEYA" overcome difficult sections of the route and maintain mobility far from roads.
3. VEYA — an amphibious vehicle
The route doesn't necessarily end at the shore. "VEYA" is capable of moving on water, expanding operational possibilities in areas with a large number of rivers, lakes, swampy territories, and hard-to-reach sections.
Amphibious capability allows the vehicle to be used where water obstacles become an insurmountable barrier for conventional transport.
4. Strength in thoughtful design
The "VEYA" is based on a design calculated for operation in difficult conditions.
Portal axles provide the necessary ground clearance, and the all-wheel-drive transmission helps realize the vehicle's traction capabilities on various types of surfaces. The all-metal body is designed for practical operation and protects the crew from external influences.
5. Power and transmission for difficult conditions
"VEYA" is equipped with a gasoline engine ZMZ PRO / GAZ G31C with a power of 149.6 hp.
It works in tandem with a mechanical six-speed gearbox. This combination provides a power reserve and allows you to select a driving mode taking into account the terrain, road conditions, and load.
6. Comfort that doesn't end with the road
"VEYA" is intended not only for overcoming off-road conditions but also for transporting people on long routes.

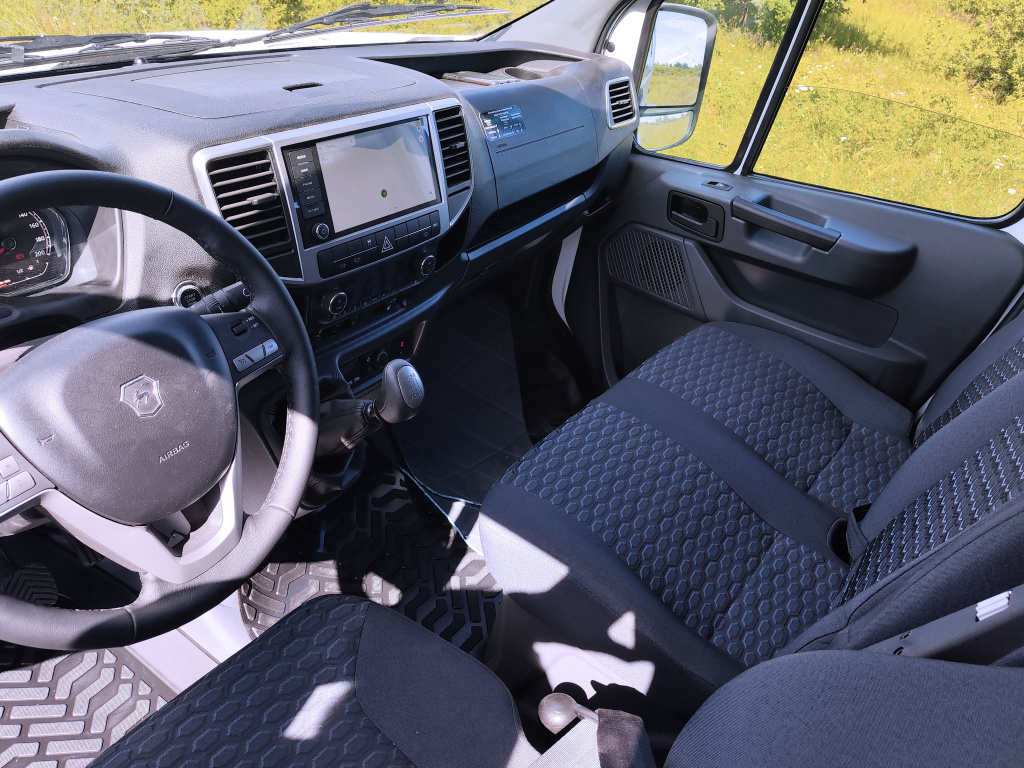

The all-metal insulated body helps maintain comfortable conditions inside the vehicle. The design provides convenient passenger accommodation and the possibility of adapting the cabin to the customer's tasks.
7. Capacity and payload
Depending on the configuration, "VEYA" is designed to accommodate from 2 to 8 people.
Payload capacity depends on the type of surface:
- up to 1100 kg — on dense ground;
- up to 700 kg — on weak soils and afloat.
This allows transporting work crews, equipment, tools, and necessary cargo to remote facilities.
8. Equipment for your tasks
"VEYA" can be adapted to operating conditions and customer tasks. Depending on the purpose of the vehicle, the configuration, equipment, and additional options are selected.
This allows preparing the ATV for expedition work, servicing remote facilities, transporting personnel, or solving special tasks.
9. Areas of application
The ZVM-29082 "VEYA" 4×4 is suitable for operation where cross-country ability, autonomy, and the ability to transport people and equipment outside the road network are important.
Main areas of application:
- oil, gas, and energy industries;
- geological exploration and expedition work;
- servicing remote production facilities;
- forestry and agriculture;
- search, rescue, and emergency services;
- environmental and patrol tasks.
10. Technical specifications
| Wheel arrangement | 4×4 |
| Vehicle type | Wheeled amphibious all-terrain vehicle |
| Engine | ZMZ PRO / GAZ G31C |
| Engine power | 149.6 hp |
| Transmission | Mechanical, 6-speed |
| Tire size | 1680×700 mm |
| Ground clearance | from 700 mm |
| Number of seats | 2–8 |
| Curb weight | 3500 kg |
| Payload on dense ground | up to 1100 kg |
| Payload on weak soils and afloat | up to 700 kg |
| Maximum weight on dense ground | 4200 kg |
| Maximum weight on weak soils and afloat | 4000 kg |
| Dimensions (L×W×H) | 6300×2540×3300 mm |
This is interesting: VEYA 4×4 vs. TREKOL YUGRA
Both vehicles belong to the class of all-wheel-drive wheeled amphibious ATVs. Let's compare the main parameters that help evaluate the capabilities of the equipment for off-road work.
| Parameter | ZVM-29082 "VEYA" | TREKOL YUGRA |
|---|---|---|
| Wheel arrangement | 4×4 | 4×4 |
| Tire size | 1680×700 mm | 1650×700 mm |
| Ground clearance | from 700 mm | 610 mm |
| Number of seats | 2–8 | 8 |
| Payload on dense ground | up to 1100 kg | up to 1100 kg |
| Payload on weak soils | up to 700 kg | up to 700 kg |
| Engine power | 149.6 hp | 149.6 hp |
What are the features of each model?
The ZVM-29082 "VEYA" stands out for its ground clearance of from 700 mm and the combination of 1680×700 mm tires with portal axles. The TREKOL YUGRA has a higher declared payload capacity.
The choice depends on operating conditions: the nature of the soil, route features, number of passengers, and the volume of equipment transported.
Choose the "VEYA" for your tasks
Tell the specialists at Zavod Vezdekhodnykh Mashin where and for what purpose you plan to use the ATV. We will help you choose the configuration and additional equipment taking into account operating conditions.
ZVM-29082 "VEYA" 4×4 — when the route goes where conventional roads end.
Contact us to get a consultation and learn more about configurations and purchase conditions.
Photo and Video
ZVM-29082 "VEYA" 4×4
More cross-country ability. Fewer route restrictions.
The ZVM-29082 "VEYA" is an all-wheel-drive wheeled amphibious ATV designed for transporting people, equipment, and cargo in conditions where conventional transport loses mobility. Enlarged wheels, high ground clearance, and portal axles help overcome difficult terrain, while the sealed body allows it to continue moving on water.
1. Cross-country ability that opens new routes
"VEYA" is designed for movement over rough terrain, deep snow, swamps, and other weak soils.
The 4×4 wheel arrangement provides drive to all wheels. Portal axles and ground clearance of from 700 mm help overcome uneven terrain, ruts, and obstacles that become a serious limitation for conventional vehicles.
2. 1680×700 mm tires — a large support area on difficult terrain
Ultra-low pressure tires are one of the key elements of the "VEYA" design. Due to the large contact area with the surface, the load is distributed over the ground, reducing specific pressure and the risk of sinking.
This is especially important when driving on snow, swamps, peat bogs, and sand — where heavy equipment finds it difficult to maintain stable movement. The 1680×700 mm size, combined with portal axles and high ground clearance, helps "VEYA" overcome difficult sections of the route and maintain mobility far from roads.
3. VEYA — an amphibious vehicle
The route doesn't necessarily end at the shore. "VEYA" is capable of moving on water, expanding operational possibilities in areas with a large number of rivers, lakes, swampy territories, and hard-to-reach sections.
Amphibious capability allows the vehicle to be used where water obstacles become an insurmountable barrier for conventional transport.
4. Strength in thoughtful design
The "VEYA" is based on a design calculated for operation in difficult conditions.
Portal axles provide the necessary ground clearance, and the all-wheel-drive transmission helps realize the vehicle's traction capabilities on various types of surfaces. The all-metal body is designed for practical operation and protects the crew from external influences.
5. Power and transmission for difficult conditions
"VEYA" is equipped with a gasoline engine ZMZ PRO / GAZ G31C with a power of 149.6 hp.
It works in tandem with a mechanical six-speed gearbox. This combination provides a power reserve and allows you to select a driving mode taking into account the terrain, road conditions, and load.
6. Comfort that doesn't end with the road
"VEYA" is intended not only for overcoming off-road conditions but also for transporting people on long routes.
The all-metal insulated body helps maintain comfortable conditions inside the vehicle. The design provides convenient passenger accommodation and the possibility of adapting the cabin to the customer's tasks.
7. Capacity and payload
Depending on the configuration, "VEYA" is designed to accommodate from 2 to 8 people.
Payload capacity depends on the type of surface:
- up to 1100 kg — on dense ground;
- up to 700 kg — on weak soils and afloat.
This allows transporting work crews, equipment, tools, and necessary cargo to remote facilities.
8. Equipment for your tasks
"VEYA" can be adapted to operating conditions and customer tasks. Depending on the purpose of the vehicle, the configuration, equipment, and additional options are selected.
This allows preparing the ATV for expedition work, servicing remote facilities, transporting personnel, or solving special tasks.
9. Areas of application
The ZVM-29082 "VEYA" 4×4 is suitable for operation where cross-country ability, autonomy, and the ability to transport people and equipment outside the road network are important.
Main areas of application:
- oil, gas, and energy industries;
- geological exploration and expedition work;
- servicing remote production facilities;
- forestry and agriculture;
- search, rescue, and emergency services;
- environmental and patrol tasks.
10. Technical specifications
| Wheel arrangement | 4×4 |
| Vehicle type | Wheeled amphibious all-terrain vehicle |
| Engine | ZMZ PRO / GAZ G31C |
| Engine power | 149.6 hp |
| Transmission | Mechanical, 6-speed |
| Tire size | 1680×700 mm |
| Ground clearance | from 700 mm |
| Number of seats | 2–8 |
| Curb weight | 3500 kg |
| Payload on dense ground | up to 1100 kg |
| Payload on weak soils and afloat | up to 700 kg |
| Maximum weight on dense ground | 4200 kg |
| Maximum weight on weak soils and afloat | 4000 kg |
| Dimensions (L×W×H) | 6300×2540×3300 mm |
This is interesting: VEYA 4×4 vs. TREKOL YUGRA
Both vehicles belong to the class of all-wheel-drive wheeled amphibious ATVs. Let's compare the main parameters that help evaluate the capabilities of the equipment for off-road work.
| Parameter | ZVM-29082 "VEYA" | TREKOL YUGRA |
|---|---|---|
| Wheel arrangement | 4×4 | 4×4 |
| Tire size | 1680×700 mm | 1650×700 mm |
| Ground clearance | from 700 mm | 610 mm |
| Number of seats | 2–8 | 8 |
| Payload on dense ground | up to 1100 kg | up to 1100 kg |
| Payload on weak soils | up to 700 kg | up to 700 kg |
| Engine power | 149.6 hp | 149.6 hp |
What are the features of each model?
The ZVM-29082 "VEYA" stands out for its ground clearance of from 700 mm and the combination of 1680×700 mm tires with portal axles. The TREKOL YUGRA has a higher declared payload capacity.
The choice depends on operating conditions: the nature of the soil, route features, number of passengers, and the volume of equipment transported.
Choose the "VEYA" for your tasks
Tell the specialists at Zavod Vezdekhodnykh Mashin where and for what purpose you plan to use the ATV. We will help you choose the configuration and additional equipment taking into account operating conditions.
ZVM-29082 "VEYA" 4×4 — when the route goes where conventional roads end.
Contact us to get a consultation and learn more about configurations and purchase conditions.

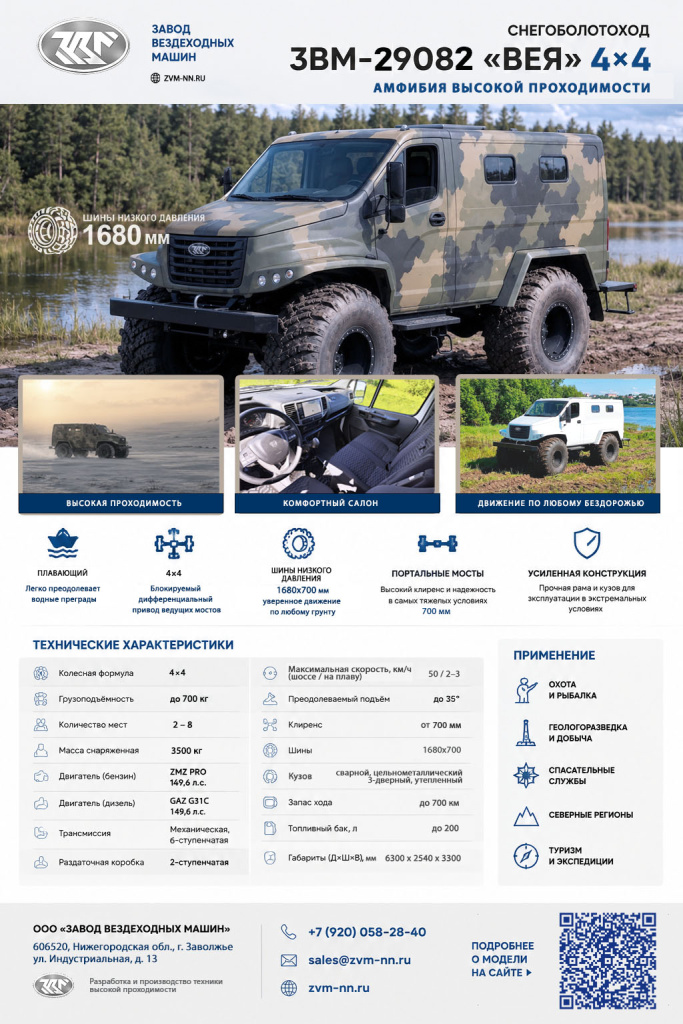

Specifications
| Modifications | ZVM-29082 4×4 with portal axles |
|---|---|
| General Data | |
| Designation | ZVM-29082 |
| Wheel arrangement | 4×4 |
| Curb weight, kg | 3,500 |
| Maximum permissible weight / payload capacity | |
| — on firm ground, kg | 4,200 / 1100 |
| — on weak-bearing soils and afloat, kg | 4,000 / 700 |
| Wheelbase (to rear axle) / track / ground clearance, mm | 3,700 / 1,800 / >700 |
| Overall dimensions: length / width / height, mm | 6,300 / 2,540 / 3,300 |
| Body | |
| Body type | All-metal 3-door with roof hatch |
| Number of seats in the cabin, including driver (available configurations) | 2–8 |
| Engine | |
| Petrol: ZMZ PRO (ZMZ 409051.10 or 409052.10) | 149.6 hp |
| Diesel: GAZ G31C | 149.6 hp |
| Transmission | |
| Clutch | Single-plate, dry-friction, hydraulically operated |
| Gearbox | Mechanical 6-speed synchronized |
| Transfer case | Mechanical 2-speed with lockable symmetrical bevel inter-axle differential |
| Final drive | Bevel, hypoid with symmetrical bevel differential |
| Wheel hub reduction gear | Mechanical single-stage reduction gear |
